Carbon Vane for Vacuum Pump Precision Graphite Manufacturing
When rotary vane vacuum pumps require continuous operation under dry running conditions, standard sliding materials fail due to friction and heat. CARBOLVE engineers graphite carbon vanes with exact dimensional tolerances (±0.01mm) and self-lubricating properties, ensuring stable vacuum generation without oil contamination.
- Self-Lubricating Dry Operation
- Thermal Stability up to 200°C
- OEM Dimension Matching
- Custom Machining Available
What Is a Carbon Vane?
A carbon vane is a precision-machined sliding component installed inside the rotor slots of a rotary vane vacuum pump. As the rotor spins eccentrically within the pump cylinder, centrifugal force pushes the vanes outward against the cylinder wall.
This action creates expanding and contracting crescent-shaped chambers that draw in, compress, and exhaust air or gas. In dry-running pumps where oil cannot be used, standard metal or plastic vanes would overheat and seize. Carbon graphite is utilized because its inherent crystalline structure provides a continuous microscopic transfer film on the cylinder wall, enabling smooth sliding without external lubrication.
Explore Related Materials:
Engineering Advantages of CARBOLVE Vanes
Addressing the specific mechanical constraints of continuous vacuum generation through optimized material science and precision machining.
Extended Wear Life in Dry Running
Constraint: Dry vacuum pumps lack oil, causing rapid wear on standard materials. Solution: Impregnated graphite structure forms a protective transfer film on the stator. Benefit: Reduces maintenance intervals and replacement frequency in continuous packaging or printing machinery.
Exact Dimensional Matching
Constraint: Vanes that are too tight jam the rotor; too loose causes vacuum loss. Solution: CNC surface grinding controls thickness tolerances to within ±0.01mm. Benefit: Ensures immediate operational efficiency upon installation without break-in periods or vacuum leakage.
Thermal Stability Under Load
Constraint: Gas compression generates internal pump temperatures exceeding 150°C. Solution: Selected carbon grades possess a low coefficient of thermal expansion. Benefit: Prevents vanes from expanding and seizing in the rotor slots during extended heavy-duty operation.
Carbon Material Selection
Matching the correct carbon grade to the pump's operating environment is critical. We formulate and select materials based on rotational speed, operating temperature, and gas composition.
Why Graphite Structure Matters
The layered hexagonal lattice of graphite allows atomic planes to slide over one another easily. This inherent property provides low friction without external fluids, while resisting chemical attacks from aggressive pumped gases.
| Material Type | Structural Features | Typical Application Scenario |
|---|---|---|
| Resin-Impregnated Graphite Vane | Enhanced density, reduced porosity, excellent self-lubrication up to 200°C. | Standard dry-running rotary vane vacuum pumps (e.g., printing, packaging). |
| Antimony-Impregnated Carbon Vane | High mechanical strength, blister resistance, thermal stability up to 400°C. | Heavy-duty industrial vacuum systems, high-temperature continuous operation. |
| Pure Electrographite Vane | Exceptional chemical inertness, moderate strength, high thermal conductivity. | Laboratory equipment, corrosive gas pumping, medical vacuum applications. |
| Carbon Composite Vane | Reinforced matrix for extreme flexural strength, custom wear rates. | Large scale rough vacuum applications, custom OEM pump designs. |
Technical Specifications
Baseline parameters for our standard carbon vane materials. Specific grades are selected based on customer pump drawings or sample analysis.
- Density
- 1.75 - 1.95 g/cm³
- Shore Hardness
- 75 - 95 Scleroscope
- Flexural Strength
- 45 - 75 MPa
- Max Operating Temp
- 200°C (Resin) / 400°C (Metal Imp.)
- Dimensional Tolerance
- Length/Width: ±0.1mm
Thickness: ±0.01mm - Surface Finish

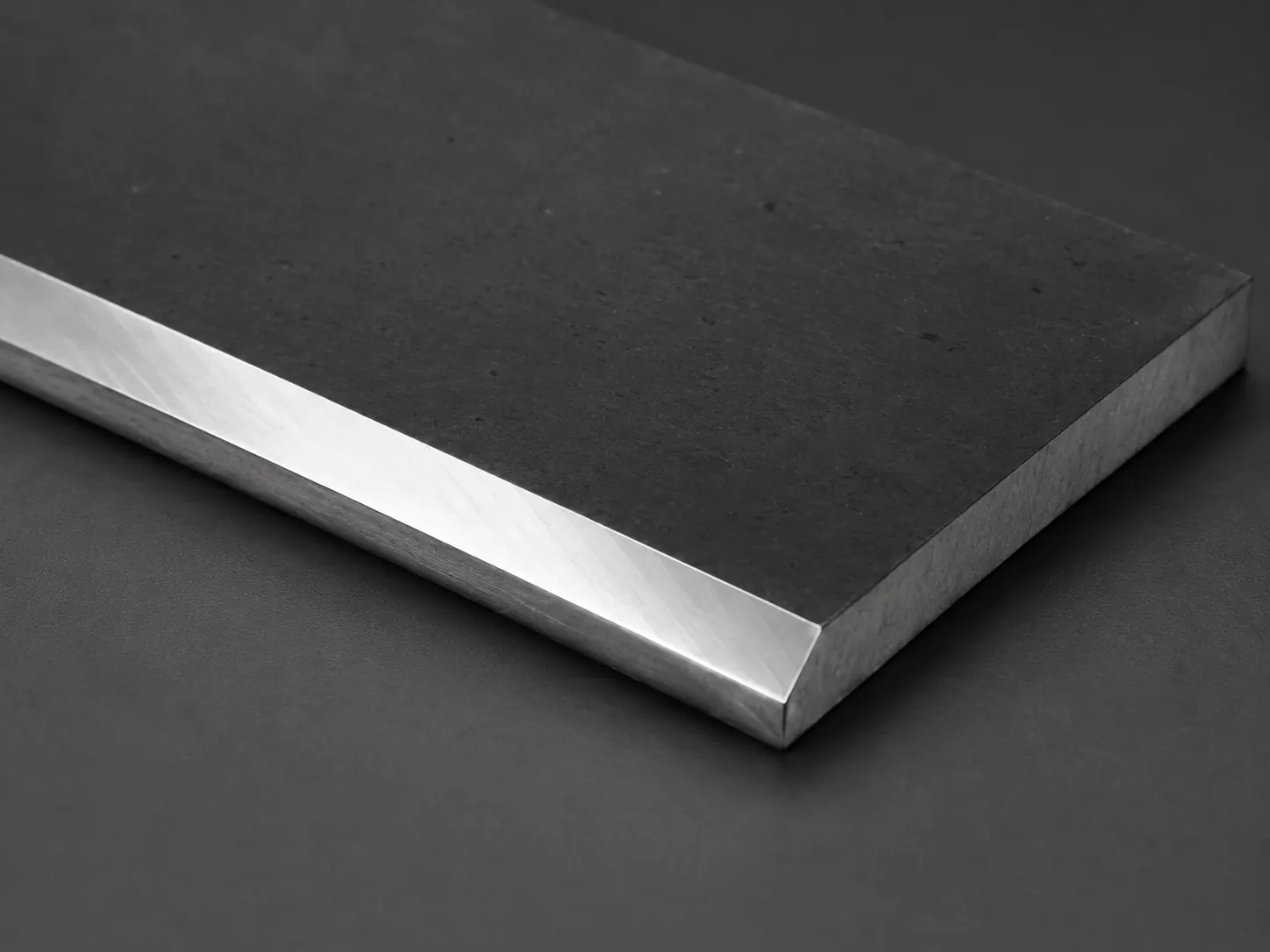

- Precision ground, smooth polished
Note: Specifications are customizable. We accept OEM drawings (CAD/PDF) or physical samples for reverse engineering and mass production.
Product Categories
Supplying replacement parts for maintenance facilities and bulk components for pump manufacturers.

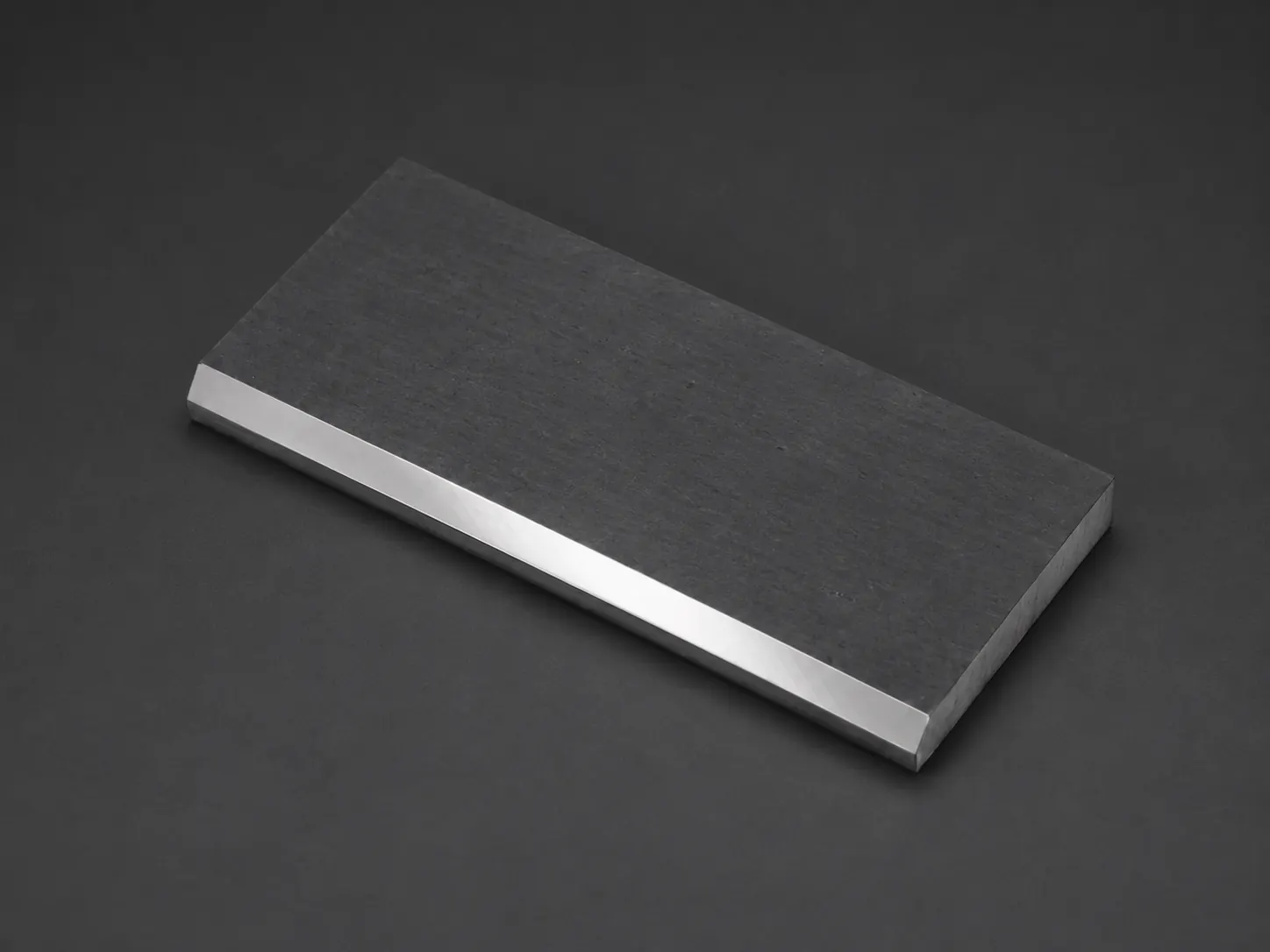

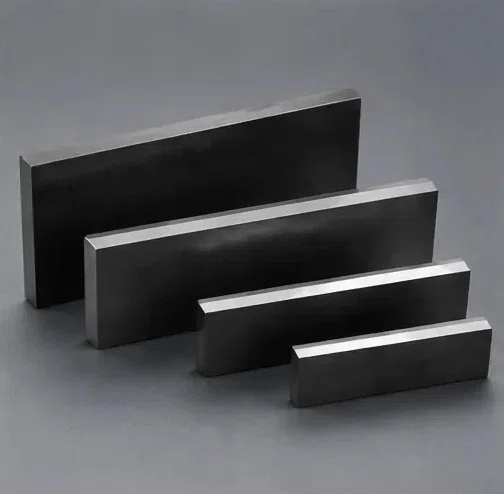

Standard Carbon Vanes
Pre-sized vanes for common dry rotary vane vacuum pumps used in general industrial applications.
OEM Replacement
Dimensionally matched aftermarket replacement kits for major European and global pump brands.
Custom Machined Vanes
Manufactured according to specific client drawings, integrating custom chamfers, slots, or material grades.
Heavy-Duty Vanes
Metal-impregnated variants designed to withstand higher pressures and continuous thermal loads.
Applications of Carbon Vanes
Reliable vacuum generation components for diverse industrial sectors.

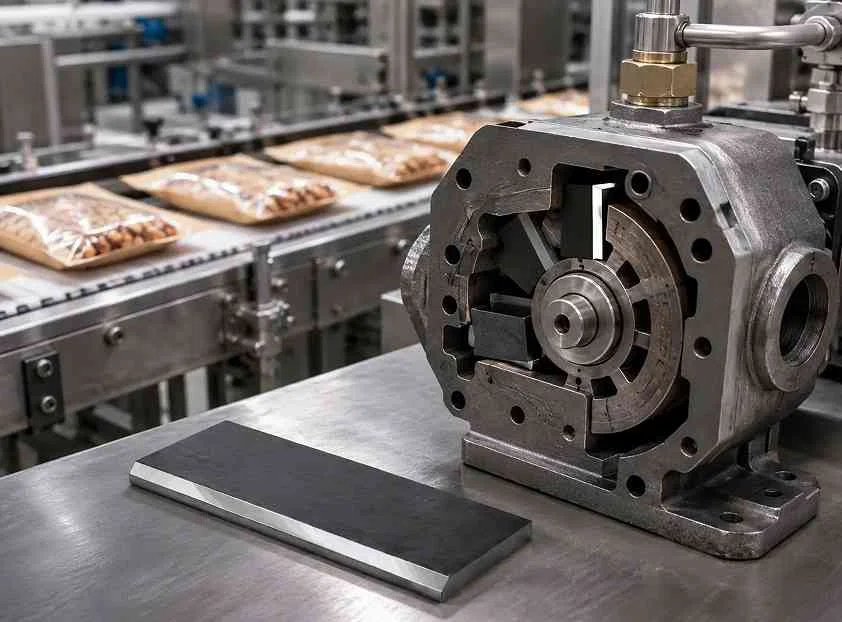

Packaging Machinery
Printing Presses
Medical Equipment

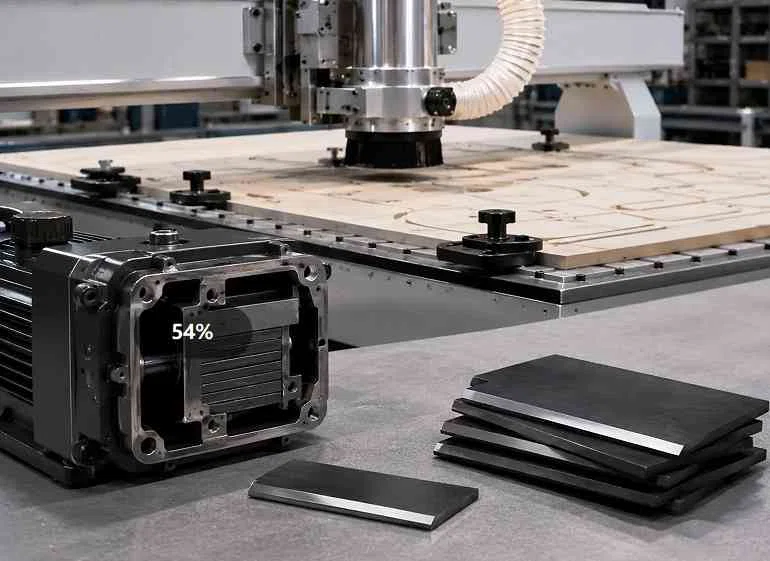

CNC Routing
Common Problems With Poor Quality Vanes
How CARBOLVE engineering resolves frequent pump failures caused by substandard replacement parts.
Problem: Short Service Life
Standard carbon wears rapidly, requiring frequent pump teardowns.
CARBOLVE Solution
Resin-impregnated graphite formulations increase density, drastically reducing wear rates.
Problem: Vane Jamming
Vanes expand under heat and stick inside the rotor slots, causing pump failure.
CARBOLVE Solution
Strict dimensional control (±0.01mm) and low thermal expansion materials ensure free sliding.
Problem: Edge Chipping
Brittle vanes break during startup centrifugal forces, destroying the pump cylinder.
CARBOLVE Solution
Optimized flexural strength (up to 75 MPa) prevents brittle fracture during high-speed rotation.
Manufacturing Capability & Quality Control
With over 20 years of factory experience in carbon and graphite products, CARBOLVE maintains complete control over the manufacturing process, from raw material formulation to final inspection.
Manufacturing Process
- Carbon material formulation
- Pressing and sintering
- Precision CNC machining
- Surface double-disc grinding
- Edge chamfering
Quality Control (CE Certified)
- Incoming raw material testing
- Density & hardness verification
- 100% dimensional inspection
- Surface finish checking
- Batch traceability
Custom Carbon Vane Manufacturer for OEM Vacuum Pump Applications
Whether you need compatible replacement parts for existing pump fleets or custom-engineered vanes for a new pump design, we support small batch prototyping and high-volume bulk orders. Send us your CAD drawing or a physical sample for evaluation.
Carbon Vane vs Metal Vane Materials
Why dry-running vacuum pumps specify carbon graphite over traditional metals.
| Feature | Carbon Graphite Vane | Metal Vane (Steel/Aluminum) |
|---|---|---|
| Lubrication Requirement | None (Self-lubricating dry run) | Requires continuous oil lubrication |
| Friction & Heat Generation | Very Low | High (if lubrication fails) |
| Vacuum Environment Compatibility | Ideal for clean, oil-free vacuum | Causes oil mist contamination |
| Noise Level | Low (Dampens vibration) | Higher metallic sliding noise |
| Failure Mode | Gradual wear, pump remains safe | Can seize and destroy cylinder |
Conclusion: Carbon graphite vanes are the mandatory engineering choice for applications requiring clean, oil-free vacuum generation, such as food packaging and medical aspiration.
How To Choose The Right Carbon Vane?
Follow these steps to ensure correct fitment and optimal pump performance.
Identify Pump Model
Check the pump nameplate for the manufacturer brand and exact model number.
Confirm Dimensions
Measure Length x Width x Thickness (e.g., 250 x 39 x 4 mm). Use calipers for thickness.
Check Operating Conditions
Note if the pump runs continuously, the operating temperature, and the type of gas pumped.
Consult Manufacturer
Send data to CARBOLVE to select the correct graphite grade and confirm tolerances.
