Carbon Brush Manufacturer
CARBOLVE manufactures carbon brushes and motor brushes for OEM, replacement, maintenance, and industrial applications. Our production scope includes DC motor brushes, generator brushes, industrial carbon brushes, and equipment-specific custom brushes. Submit your drawing, physical sample, dimensions, motor model, or operating information for technical evaluation.
- Custom Carbon Brush Manufacturing
- Drawing and Sample-Based Production
- Multiple Carbon Brush Materials
- OEM and Replacement Support
- Motor Application Review
Send the brush dimensions, motor model, photographs, existing markings, application details, and required quantity for evaluation.
Carbon Brushes Manufactured for Different Motors and Equipment
Carbon brush geometry, material, lead, terminal, spring, and contact surface must be selected according to the motor and operating conditions. CARBOLVE manufactures brushes across four primary categories.

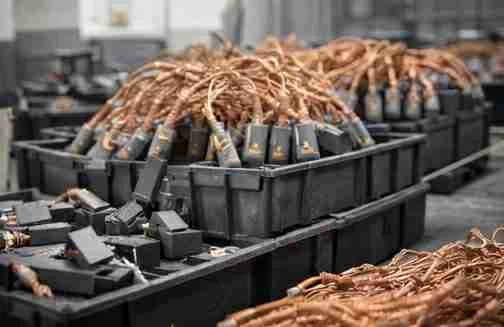

Motor Carbon Brushes
Includes DC motor brushes, applicable AC motor brushes, industrial motor brushes, and slip ring carbon brushes.
View Motor Carbon Brushes
Generator & Alternator Brushes
Includes generator carbon brushes, alternator carbon brushes, and power-generation slip-ring brushes.
View Generator Brushes

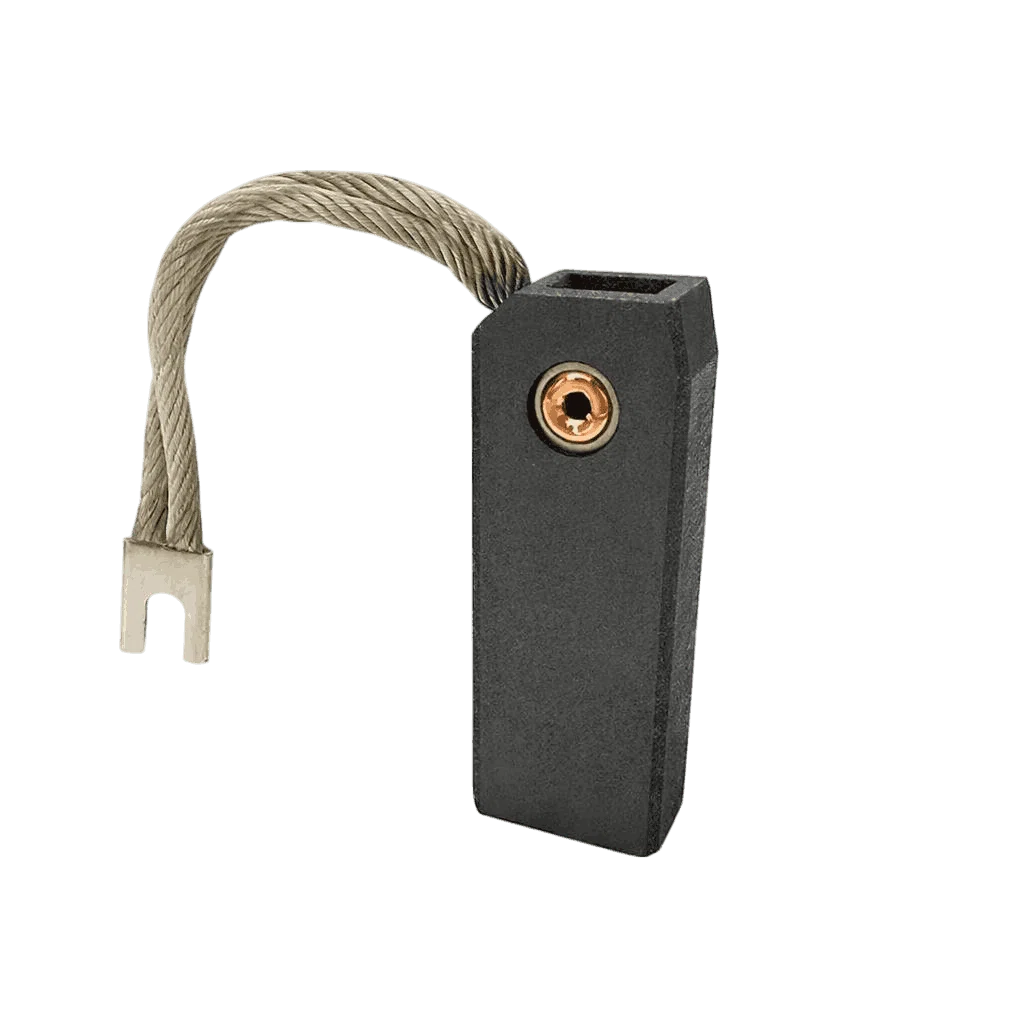

Equipment-Specific Brushes
Includes carbon brushes for power tools, mixers, vacuum motors, and air blowers.
View Equipment Carbon Brushes

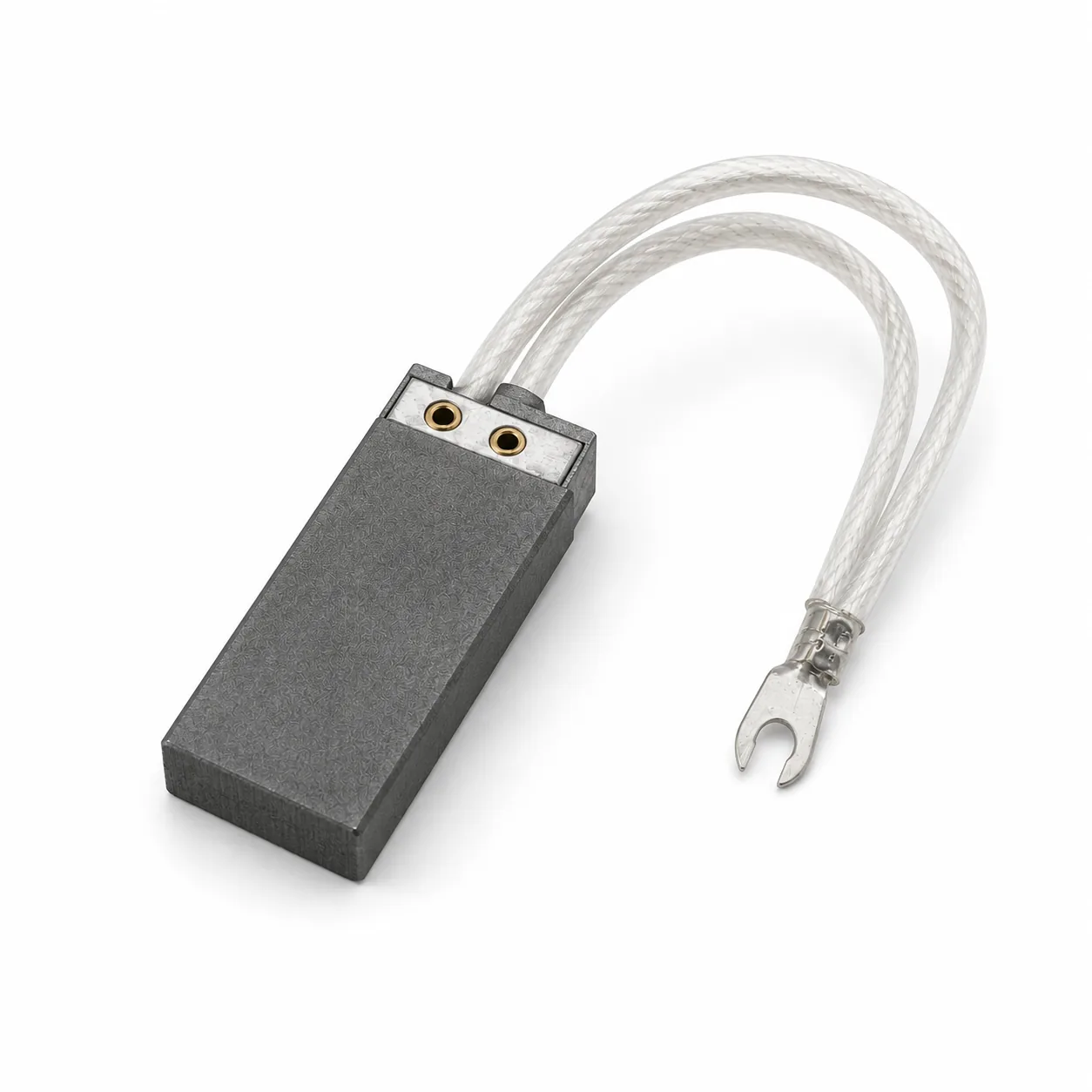

Custom Carbon Brushes
Non-standard dimensions, custom leads, custom terminals, sample-based replacement, and drawing-based OEM production.
Request a Custom BrushNot Sure Which Brush You Need?
Upload a Brush PhotoWhat Is a Carbon Brush?
A carbon brush is a sliding electrical contact used to transfer current between stationary and rotating parts in motors, generators, alternators, or slip-ring systems. The term "brush" describes its electrical-contact function rather than its physical appearance.

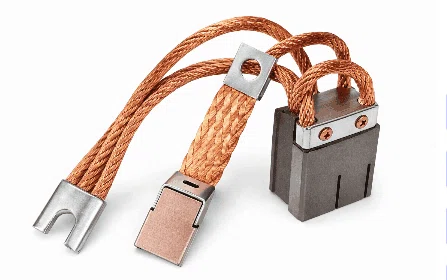

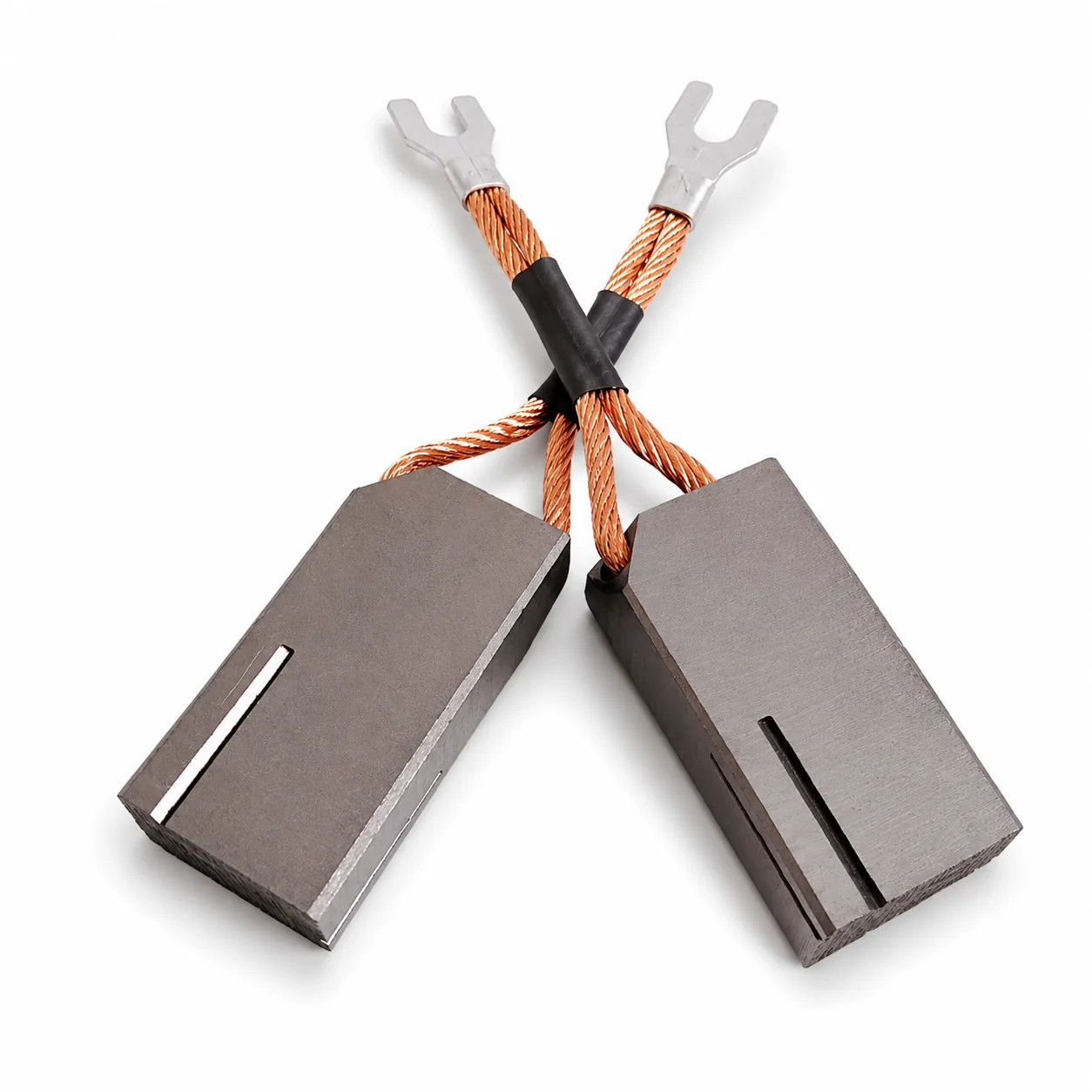

Typical Brush Components
- Carbon or graphite body
- Contact face
- Flexible copper lead or shunt
- Terminal
- Spring, cap, or other assembly where applicable
*Note: Not every carbon brush includes every component. Design depends on the application.

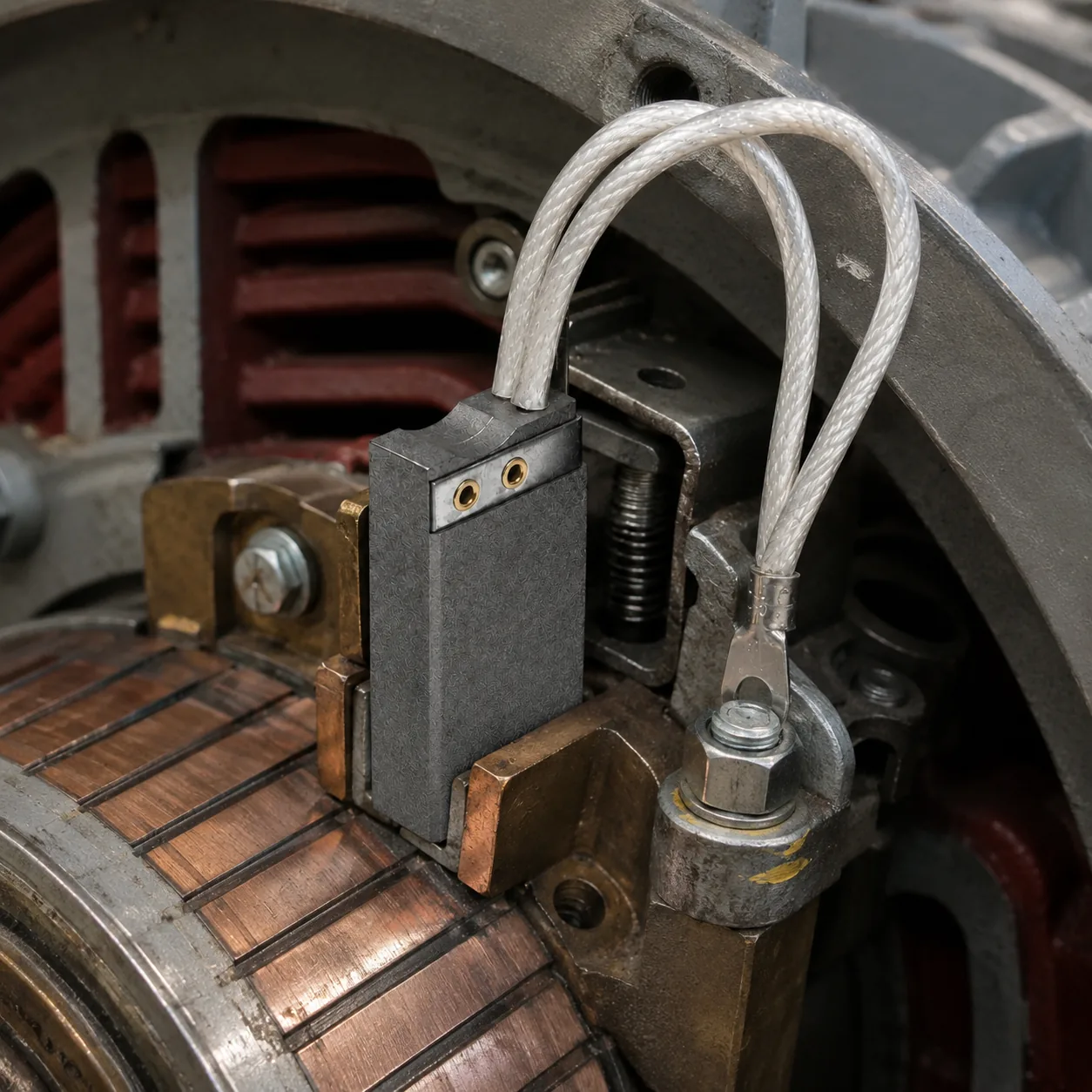

How Does a Carbon Brush Work in a Motor?
A spring or brush holder maintains contact between the brush and the commutator or slip ring.
Electrical current passes through the lead and carbon brush.
The brush contact face slides against the rotating surface.
The brush gradually wears and must be inspected or replaced according to the application.
Performance is affected by: Brush material, current, speed, spring pressure, surface condition, temperature, humidity, contamination, vibration, and duty cycle.
Carbon Brush Types Available From CARBOLVE
Products manufactured and classified by application, equipment, and structural design.
By Motor and Application
DC Motor Brush
For industrial drives and traction motors requiring specific commutation characteristics.
View Details →By Equipment

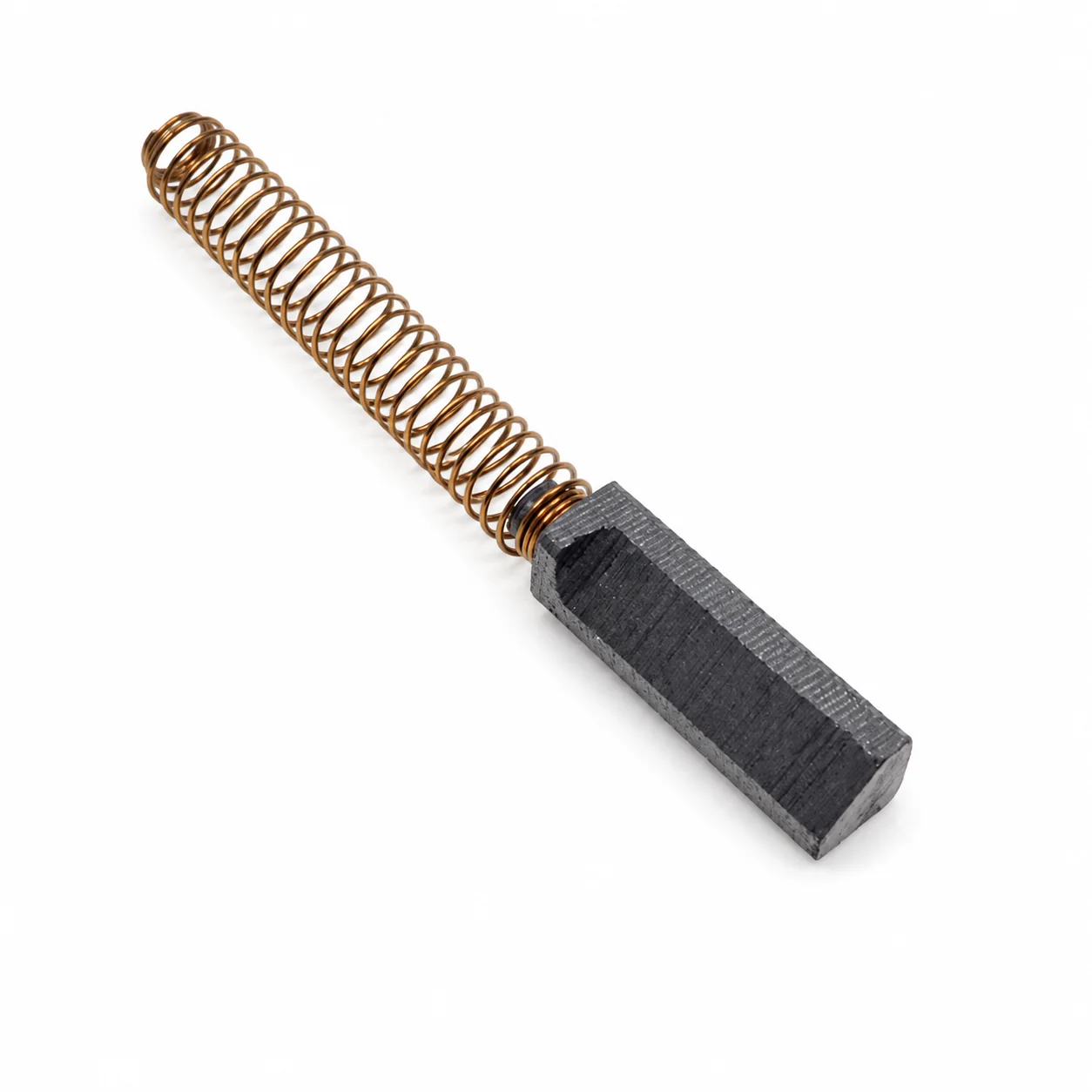

Mixer Brushes

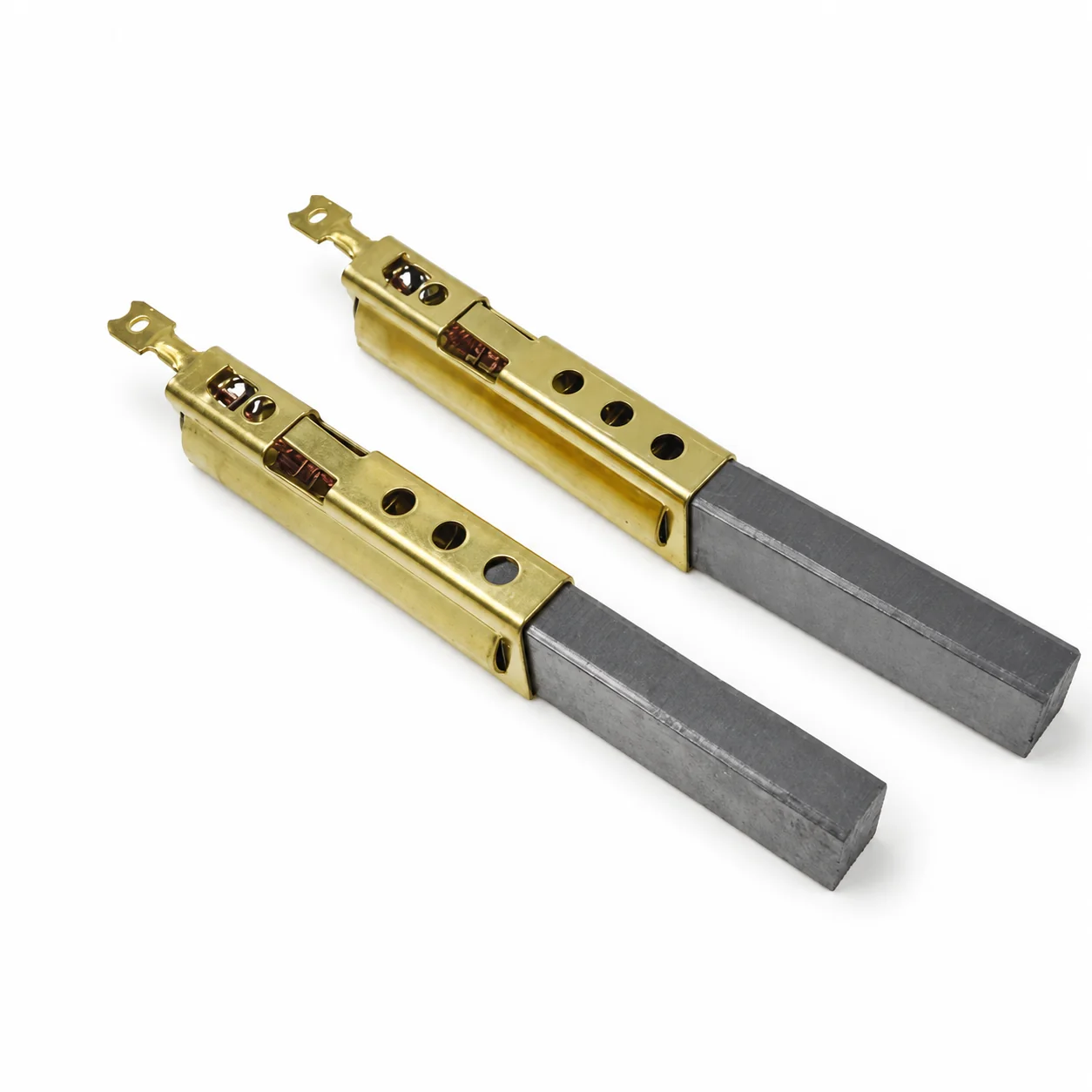

Vacuum Motor Brushes

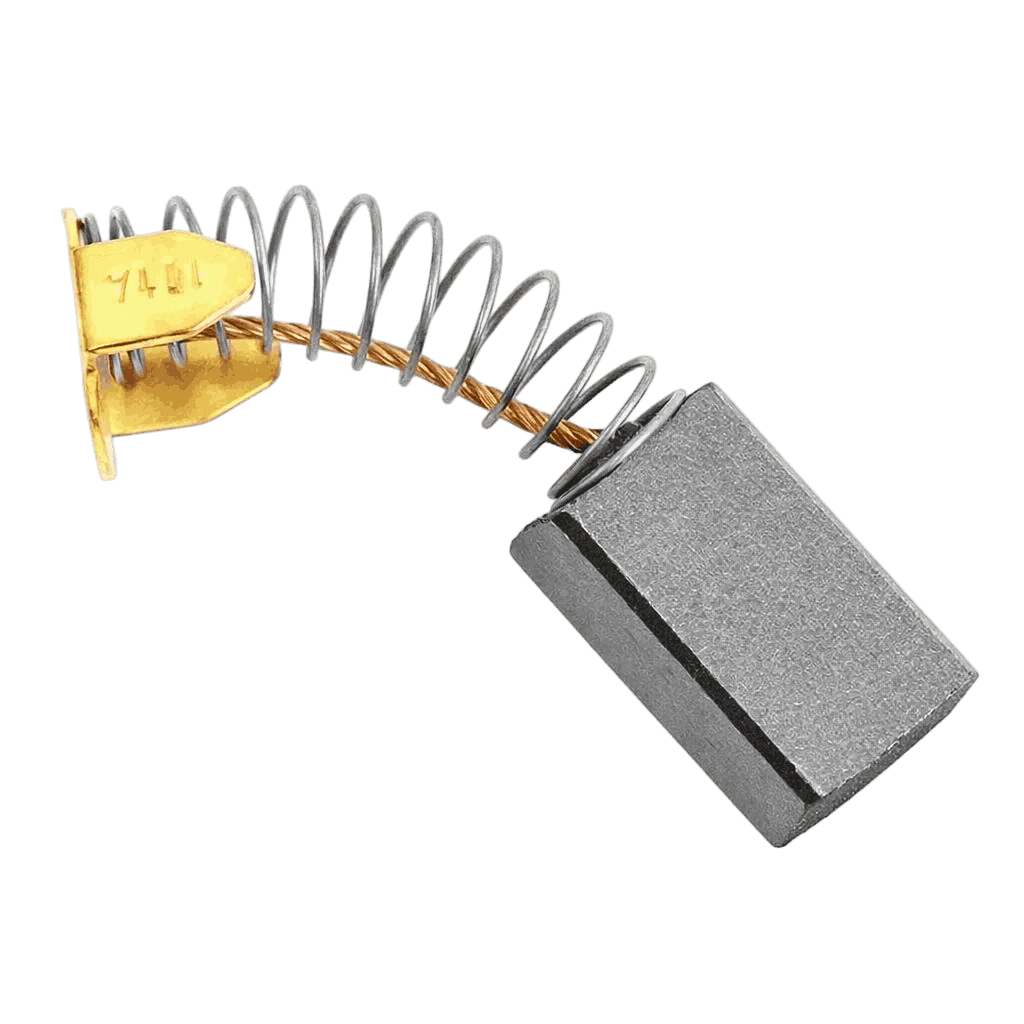

Power Tool Brushes

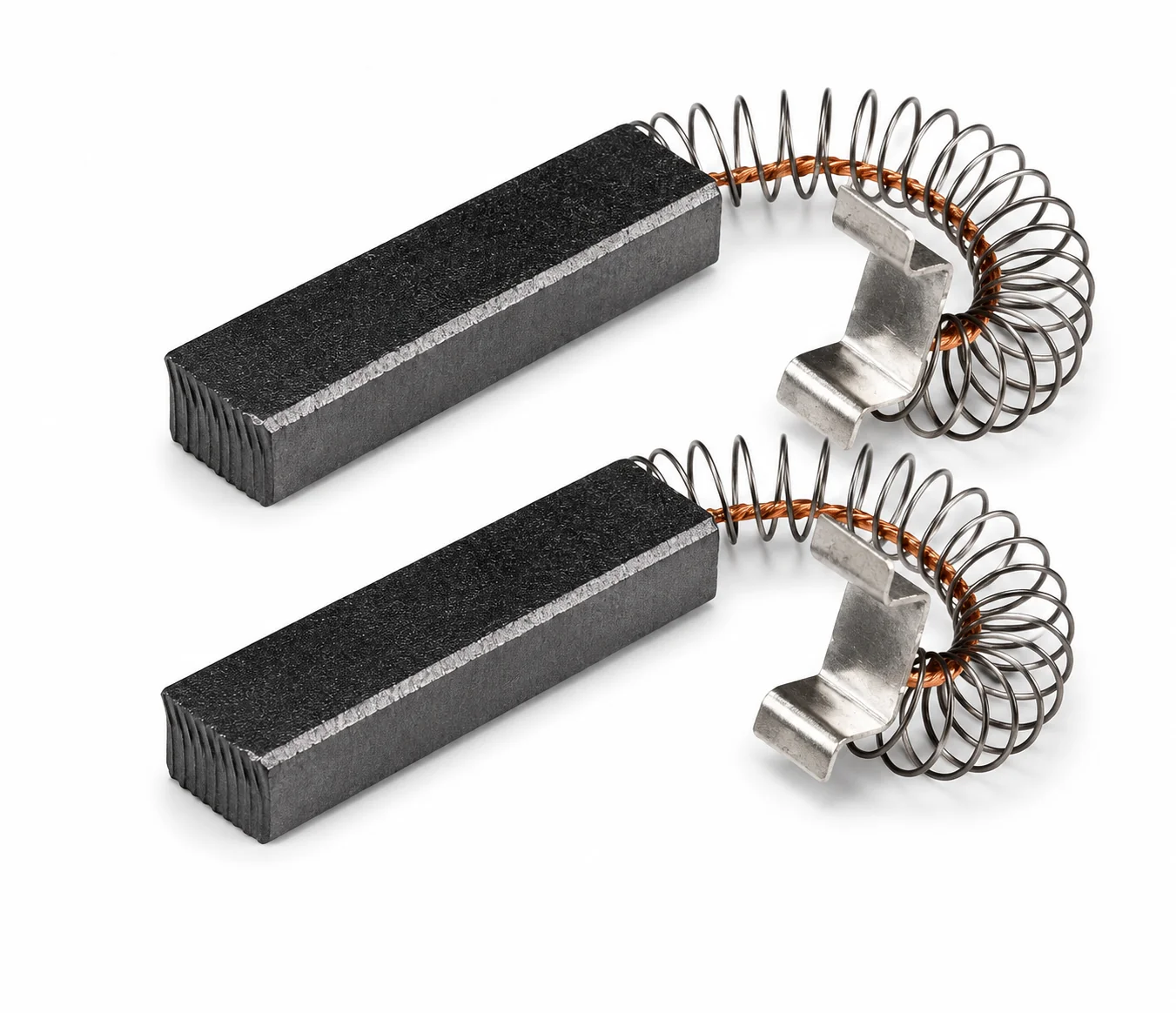

Air Blower Brushes

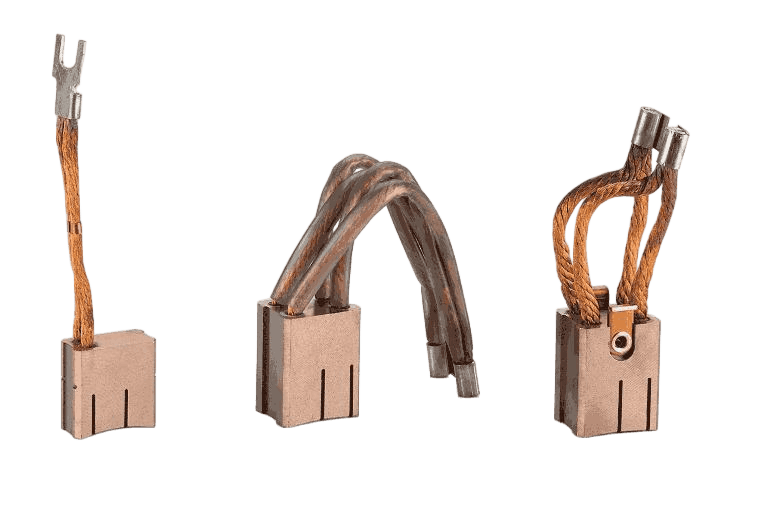

By Construction
CARBOLVE manufactures various structural designs subject to drawing confirmation:
- Single-lead brush
- Multiple-lead brush

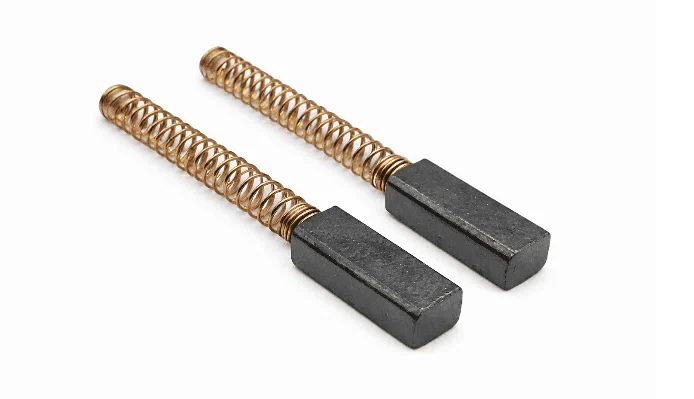

- Spring-loaded brush
- Carbon brush with cap
- Carbon brush with terminal
- Split or multi-section brush
[Confirm CARBOLVE construction type before publication]

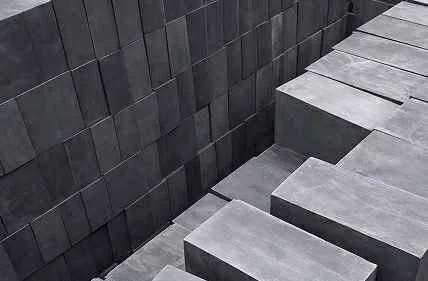

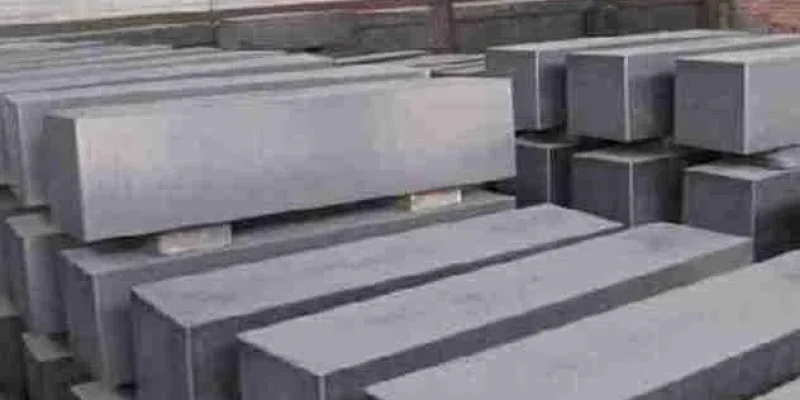

Carbon Brush Materials for Different Operating Conditions
There is no single material suitable for every motor. Material selection depends on voltage, current density, speed, commutation, duty cycle, motor design, temperature, humidity, surface condition, required electrical conductivity, and required wear behavior.
Carbon Graphite
Carbon graphite grades may be considered for selected applications requiring particular resistance, strength, commutation, or surface-film characteristics.
Graphite
Graphite-rich materials may provide lower-friction characteristics in selected applications.
Electrographite
Electrographite grades are widely considered for industrial motors and generators, but the correct grade remains application dependent.
Copper Graphite
Metal-graphite materials containing copper may be considered when higher conductivity and lower electrical resistance are important.
Silver Graphite
Silver graphite materials may be considered for selected low-voltage, signal-transfer, grounding, or specialty electrical-contact applications.
| Material Family | General Characteristic | Possible Application Direction | Information Required |
|---|---|---|---|
| Carbon graphite | Application-dependent electrical and mechanical balance | Selected motors and legacy equipment | Voltage, current, speed and surface |
| Graphite | Potentially lower-friction behavior | Selected high-speed or low-load applications | Speed, load and surface condition |
| Electrographite | Industrial motor and generator application range | DC motors, generators and industrial equipment | Current, speed, duty and environment |
| Copper graphite | Higher electrical conductivity direction | Selected low-voltage or high-current systems | Current density, voltage and temperature |
| Silver graphite | Specialty conductive contact material | Signal, grounding or specialized equipment | Contact requirements and environment |
This table provides general material directions only. Final material selection must be based on complete motor and operating information.
Carbon Brush Specifications and Custom Options
Physical and Assembly Parameters
| Brush thickness | Manufactured according to drawing, sample or confirmed dimensions |
| Brush width | Manufactured according to drawing, sample or confirmed dimensions |
| Brush length | New or unworn length should be confirmed where possible |
| Contact face | Flat, radius, bevel or application-specific geometry |
| Lead or shunt | Number, location, length and construction according to design |
| Terminal | Customer drawing, sample or confirmed terminal type |
| Spring or cap | Available where applicable and verified |
Grade-Dependent Technical Data
| Density | Available according to verified material grade |
| Hardness | Available according to verified material grade |
| Electrical resistivity | Available according to verified material grade |
| Contact voltage drop | Available according to verified material grade |
| Current-density direction | Available according to verified material grade |
| Peripheral-speed direction | Available according to verified material grade |
Common Carbon Brush Problems for Motors and Equipment
Understanding operating conditions helps identify the root cause of brush failure.
Rapid Brush Wear
Possible factors: Unsuitable material, incorrect spring pressure, surface condition, electrical load, speed, humidity, contamination, vibration.
CARBOLVE Response: Review the current brush, motor information, operating conditions, and failure pattern before suggesting a product direction.
Excessive Sparking
Possible factors: Poor brush contact, incorrect grade, worn commutator, incorrect brush fit, brush-holder condition, motor issues.
CARBOLVE Response: Evaluate brush dimensions, contact face, material, holder fit, commutator condition, and available motor data.
Brush Sticking in the Holder
Possible factors: Incorrect dimensions, dust accumulation, rough brush sides, holder deformation, temperature effects.
CARBOLVE Response: Confirm brush dimensions, side clearance, surface condition, and holder information.
Lead or Terminal Mismatch
Possible factors: Standard off-the-shelf brushes not matching specific equipment requirements.
CARBOLVE Response: Confirm lead quantity, lead position, lead length, terminal shape, spring, cap, and assembly details before production.
Why Source Carbon Brushes From CARBOLVE?
Focused Carbon Experience
CARBOLVE focuses on carbon brushes and related carbon and graphite components rather than unrelated general industrial products.
Broad Carbon Brush Range
Support for motor, generator, alternator, power tool, vacuum motor, mixer, blower, and industrial brush requirements.
Drawing & Sample Manufacturing
Products can be evaluated using drawings, samples, photographs, dimensions, markings, and equipment information.
Inspection & Confirmation
Dimensions, assembly details, identification, packaging, and agreed inspection items can be confirmed before shipment.
OEM & Replacement Support
Support for new equipment, maintenance, obsolete parts, sample reproduction, and repeat-order requirements subject to technical review.
Custom Material Review
Material, geometry, lead, terminal, spring, and contact-face requirements can be reviewed according to the application.

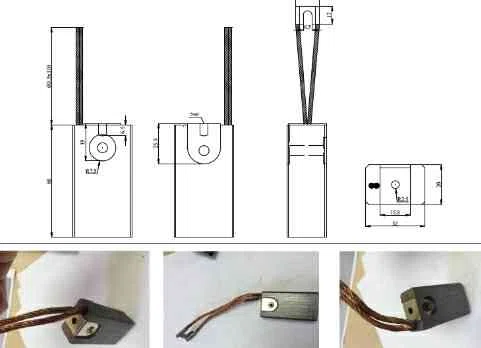

Custom Carbon Brush Manufacturer for OEM and Replacement Projects
CARBOLVE can evaluate new OEM brush designs, replacement brushes, obsolete brushes, sample-based reproduction, drawing-based production, custom leads and terminals, equipment-specific brush sets, different material directions, trial samples, and repeat-order production. Final feasibility must be confirmed after reviewing the technical information.

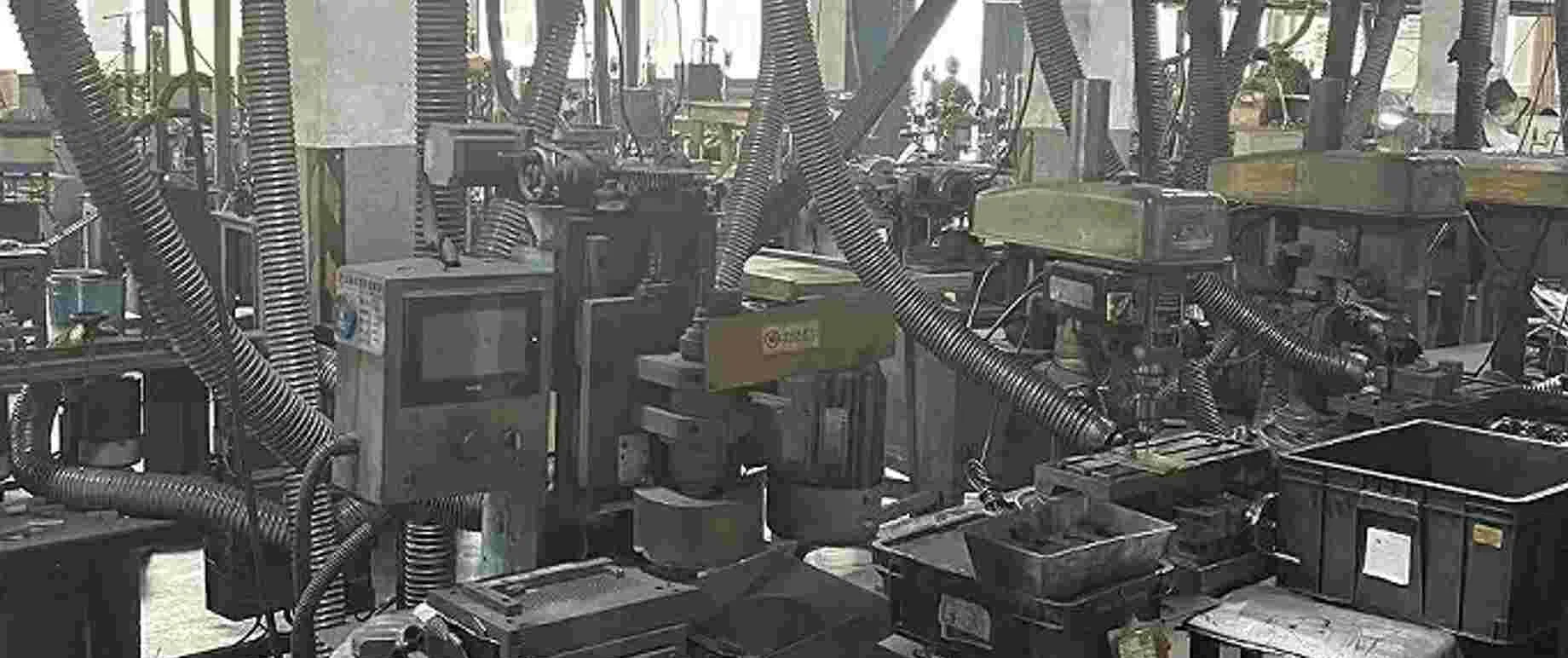

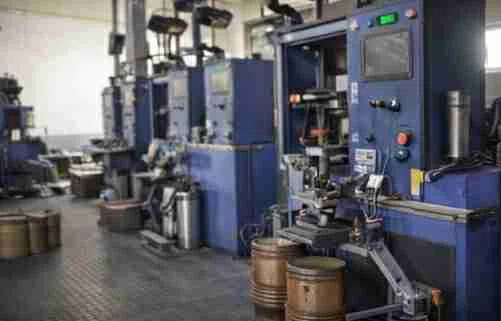

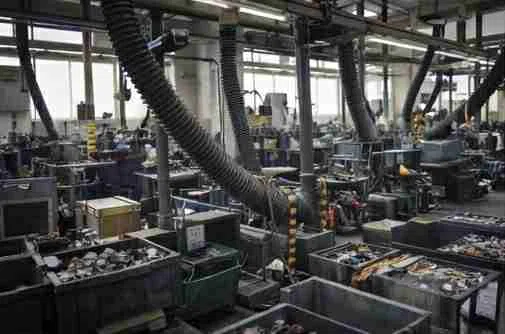

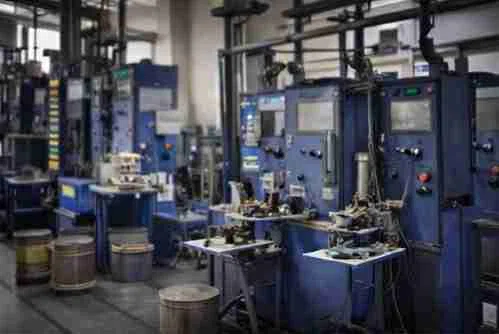

Carbon Brush Manufacturing & Quality Control
How Brushes Are Manufactured
-
1

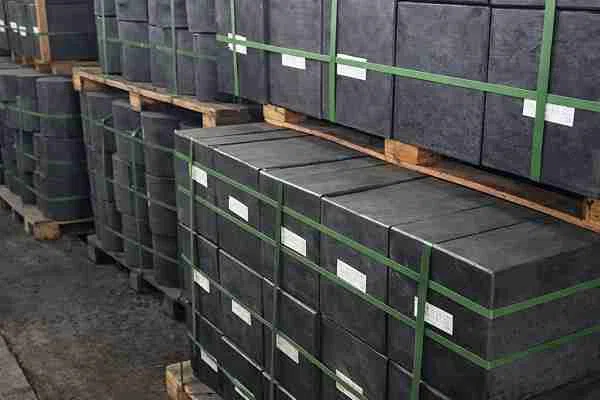

Material Selection
Use of confirmed carbon or graphite material according to the product requirement.
-
2

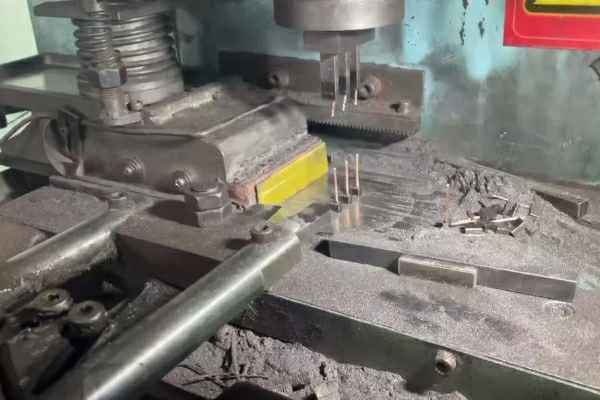

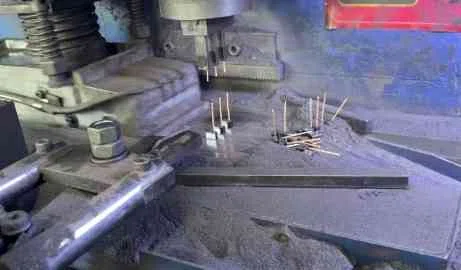

Precision Fabrication
Machine the brush body, sides, slots, bevels, radius, or other required geometry.
-
3

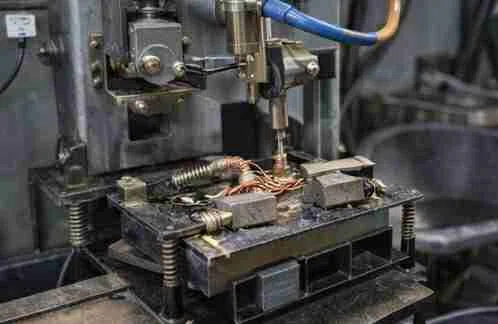

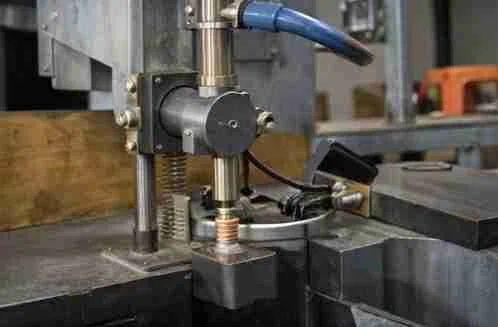

Lead and Terminal Assembly
Attach leads, terminals, springs, or caps according to the confirmed design.
-
4
Surface Finishing
Prepare the contact face and external surfaces according to requirements.

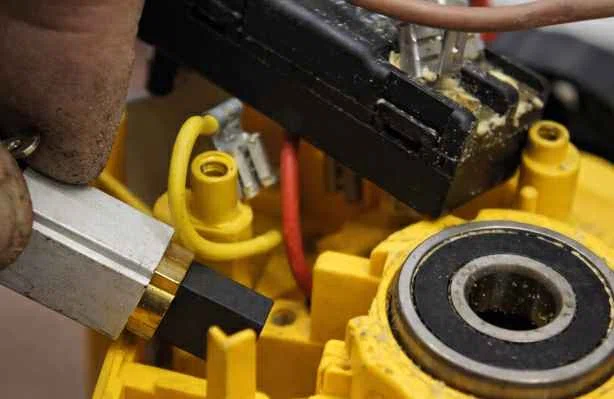

Inspection Before Shipment
Recommended Inspection Items:
- Material Identification check
- Dimensional Inspection (Thickness, width, length, radius)
- Surface and Edge Inspection for visible defects
- Lead and Terminal Inspection (Length, position, type)
- Product Marking Check
[Insert verified CARBOLVE inspection capability for electrical/mechanical tests]
How to Choose the Right Carbon Brush
Identify Motor
Provide manufacturer, model, motor type, and nameplate photograph.
Confirm Dimensions
Measure thickness, width, unworn length, lead length, and terminal.
Check Markings
Provide photos of grade code, OEM number, or manufacturer code.
Operating Conditions
Confirm voltage, current, speed, duty cycle, and environment.
Carbon Brush vs Graphite Brush: What Is the Difference?
"Carbon brush" is the broad product category. A "graphite brush" generally refers to a carbon brush made with a graphite-rich material. Electrographite, carbon graphite, copper graphite, and silver graphite are different material families used within the broader category.
| Term | Meaning |
|---|---|
| Carbon brush | General sliding electrical-contact component |
| Graphite brush | Brush using a graphite-rich material |
| Electrographite brush | Heat-treated engineered brush material family |
| Copper graphite brush | Graphite combined with copper for higher conductivity |
Carbon Brush Troubleshooting Guide
| Symptom | Possible Contributing Factors | Information to Check |
|---|---|---|
| Rapid wear | Material, current, speed, environment or surface | Motor data, brush grade, wear pattern and surface |
| Sparking | Contact, commutation, holder, surface or motor condition | Photographs, load, brush fit and commutator |
| Uneven wear | Holder alignment, pressure, vibration or surface | Brush set, spring force and mechanical alignment |
Note: These symptoms may also result from motor, holder, commutator, electrical, or mechanical conditions. A brush replacement alone may not correct the underlying problem.
Request a Custom Carbon Brush Quote
Provide all available information to help us evaluate dimensions, material direction, and manufacturing feasibility.
Frequently Asked Questions
What does a carbon brush manufacturer produce?
Can CARBOLVE manufacture a brush from a sample?
Does every AC motor use carbon brushes?
How long does a carbon brush last?
Need a Carbon Brush Manufacturer for Your Motor Project?
Complete product and motor information helps CARBOLVE evaluate dimensions, material direction, assembly details, manufacturing feasibility, inspection requirements, and quotation information. Send your brush drawing, physical sample, product photographs, motor nameplate, or complete dimensions.
